e-SV Multipurpose Pumps

Overview

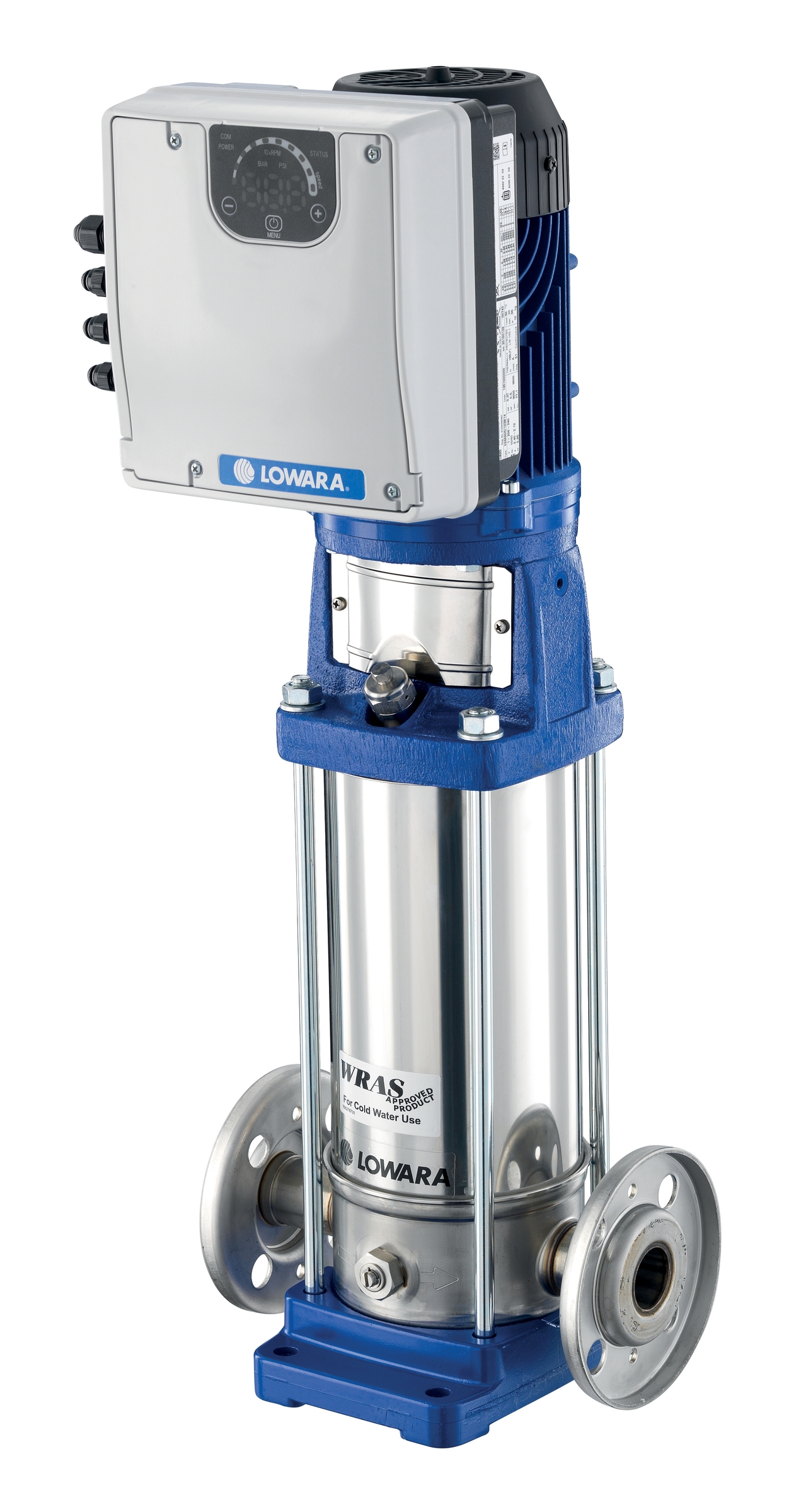

e-SV vertical multistage pump in stainless steel

The Lowara e-SV vertical multistage pump is a highly reliable and technologically advanced multipurpose pump. It’s capable of satisfying the needs of a wide variety of users and many different construction designs are available. The e-SV range feature models in eleven sizes with 1-3-5-10-15-22-33-46-66-92-125 m³/h nominal capacities.

Design features:

  • Balanced mechanical seal replaceable without need for pump disassembling (for 10-15-22SV>=5,5kW, 33-46-66-92-125SV)
  • “O” Ring seat design to allow for simple outer sleeve disassembly
  • Floating for self alignment replaceable diffuser wear ring (PPS Glass filled technopolymer to withstand chemically corrosive, mechanically aggressive and high temperature liquids)
  • Reduced impeller axial thrust for longer standard motor bearing life
  • Hard Material Intermediate bush bearing (Tungsten Carbide/Silicon Carbide) to improve life and ability to withstand heavy duty applications, like boiler feeding
  • High temperature seal option (180°C max) with low NPSH design, high pressure design (up to 40 Bar), and passivated & electro-polished versions are available upon request

Further unique features of the e-SV include the integration of performance diagnostic devices such as the optimyze modular monitoring solution and Dry Run sensor. The optimyze™ and the Dry Run sensor are available as an accessory for all models.

The e-SV is certified by WRAS, ACS and D.M. 174 for use with potable water.

Versions

  • e-SV: standard IEC motor
  • e-SVE: Variable speed Smart Pump with ultra premium efficiency IES2 drive package including a permanent magnet IE5 motor (up to 2,2 kW)
  • e-SVH: Variable speed pump with Hydrovar pump controller (up to 22 kW)
  • e-SV hydrovar® X: Fully integrated variable speed solution (IES2) with assisted reluctance high efficient IE5 motor with built-in intelligence and communication (3kW to 22kW)

Product Features

  • Versatile high efficiency multistage pump
  • Robust, long life design
  • Available in variable speed versions
  • Certified for use in potable water

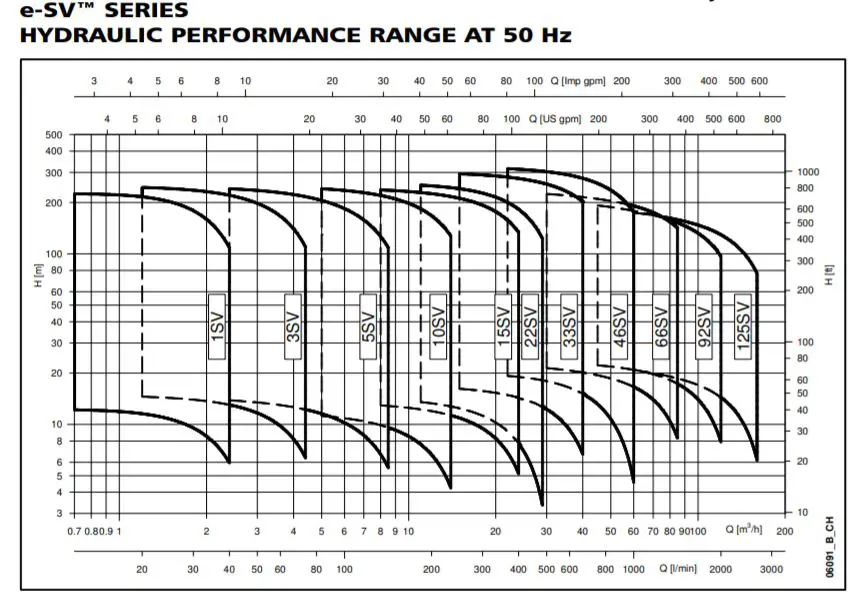

  • Delivery: up to 160m³/h
  • Head: up to 330m
